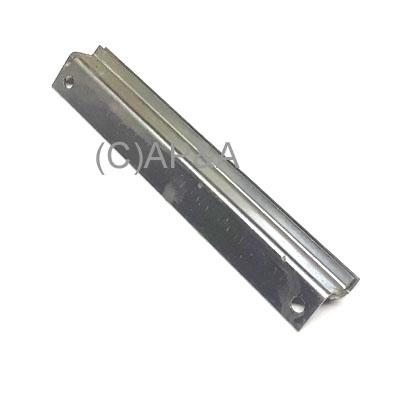

Bracket B-8015 - CPU Mounting - Lower (Williams) (USED) (SEE NOTE):

Price: $5.00 each
Status: In Stock
(8 Available)

Order:

Part #: U838
Condition: Used

Used lower metal mounting bracket for CPU/MPU board used in early Williams solid-state (SS) pinball games, approx. 1977-1984. Factory part # B-8015. This bracket is slotted and holds the lower edge of the MPU board in place when mounted in the backbox. It also helps support the driver board when it is mounted onto the pins at the bottom of the MPU board.

NOTE: TWO versions of this part were made/used in the late 1970s and early 1980s- a long version (early) measuring 10-1/2 inches wide, and a short version (late) measuring 5-1/2 inches wide. Both are 7/8 inches tall, 3/4 inches deep. Both are interchangeable, but require differently-spaced screw holes (short version has 2 screw holes, long version has 3). The version of this part that we ship to you (short or long) may vary depending on availability. Contact us when ordering if you prefer one version over the other, and we will try to accommodate if possible.

Used part in good condition.

Additional Images:
Click to Enlarge

NOTE: No warranty or returns on used items. Used items are sold as-is, and all sales are final.

Ask a question about this item

Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
WILLIAMS: Algar, Alien Poker, Barracora, Black Knight, Blackout, Contact, Cosmic Gunfight, Disco Fever, Firepower, Flash, Gorgar, Hot Tip (electronic), Jungle Lord, Laser Ball, Lucky Seven (electronic), Pharaoh, Phoenix, Pokerino, Scorpion, Solar Fire, Stellar Wars, Time Warp, Tri Zone, World Cup
