Click to Enlarge

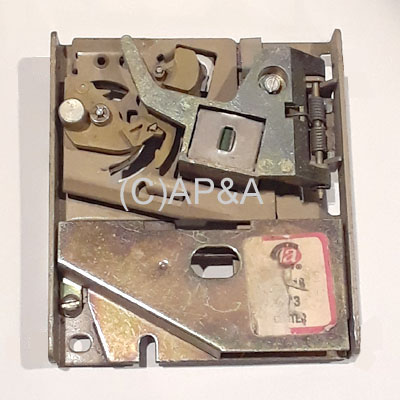

25-cent (US) Coin Mechanism - Coin Mech Inc (USED) (SEE NOTES):

Price: $15.00 each

Status: In Stock
(1 Available)

Order:



Part #: U533
Condition: Used
Used Coin Mech Inc brand coin mechanism. Accepts US quarters. Can be used in virtually any coin-operated game that uses US quarters with this type of standard mechanism. Used part in good condition, tested/working.

NOTES:
  • Image is sample only- actual item may vary in appearance/style.
  • If you have any questions about condition/style, please ask BEFORE ORDERING as used parts are not returnable.
  • Mechanism includes 4 (four) mounting studs.
  • Measures approx. 3-1/2 inches wide by 4 inches tall.
  • Used parts may require some adjustment after installation for optimum operation.
FITMENT NOTES:
  1. European/Japanese Coin Doors: May not fit on some European or Japanese coin doors that use different size/style mechs.
  2. Chicago Coin, Early Stern, Gottlieb Games: Will fit and work when studs are installed in middle holes for mounting.
  3. Late-model Bally/Williams Games Late 1980s-Up: Many of these games that do not require studs on the back (coin door side) of the mech will have to have the studs removed before installing. Just un-screw to remove.
  4. Williams Games 1965-1982: Will not fit/work as shipped. These games will require using 2 original long studs on the back (coin door side) of the mech, and 1 original retaining tab on the front of the mech. These are obsolete parts, so will have to be re-used from your old mech, or sourced from a parts machine. Stud holes on this mech will need to be enlarged and tapped to #6-32 size to accomodate original Williams long studs and front tab screws.


NOTE: No warranty or returns on used items. Used items are sold as-is, and all sales are final.
