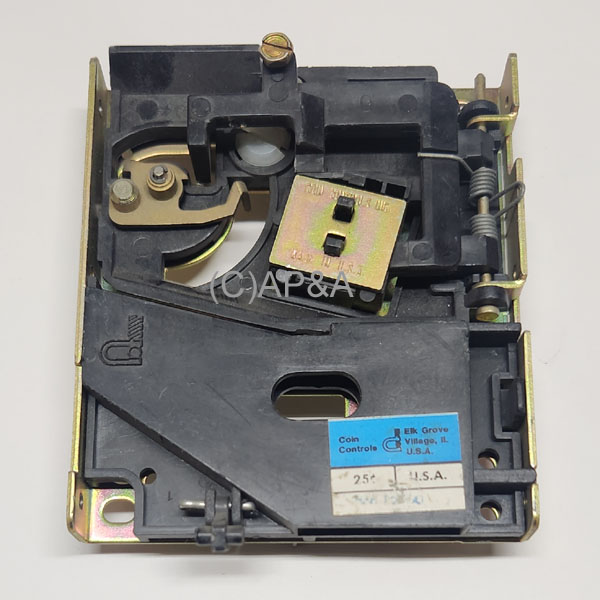

25-cent (US) Coin Mechanism - Coin Controls (USED) (SEE NOTES):

Price: $15.00 each

Status: In Stock
(7 Available)

Order:



Part #: U529
Condition: Used
Used Coin Controls brand coin mechanism. Accepts US quarters. Can be used in virtually any coin-operated game that uses US quarters with this type of standard mechanism. Used part in good condition, tested/working.

NOTES:
  • Image is sample only- actual item may vary in appearance/style.
  • Measures approx. 3-1/2 inches wide by 4 inches tall.
  • Mechanism includes 2 (two) #6-32 mounting studs on left side. If you need studs for the right side (older games- see Fitment Notes below), please order separately (part # 35-0079-00).
  • This mechanism has 3 positions on each side for mounting studs- upper, lower, middle (see Fitment Notes below). Studs simply screw in/out.
  • Used parts may require some adjustment after installation for optimum operation.
  • If you have any questions about condition/style, please ask BEFORE ORDERING as used parts are not returnable.
FITMENT NOTES:
  1. European/Japanese Coin Doors: May not fit on some European or Japanese coin doors that use different size/style mechs.
  2. Chicago Coin, Early Stern, Gottlieb Games: Will fit and work when studs are installed in middle & lower mounting holes on both sides of the mechanism (2 studs per side, part # 35-0079-00).
  3. Late-model Bally/Williams Games Late 1980s-Up: Many of these games that do not require studs on the back (coin door side) of the mech will have to have these studs removed before installing, if present. Just un-screw to remove.
  4. Williams Games 1965-1982: Will not fit/work as shipped. These games will require using 2 original long studs on the back (coin door side) of the mech, and 1 original retaining tab on the front of the mech. These are obsolete parts, so will have to be re-used from your old mech, or sourced from a parts machine.


Additional Images:
Click to Enlarge



NOTE: No warranty or returns on used items. Used items are sold as-is, and all sales are final.
