Thermal Breaker w/ Wire Leads - N.C. 85C (185F):

Price: $5.99 each

Status: In Stock
(25 Available)

Order:



Part #: TB085C
Condition: New

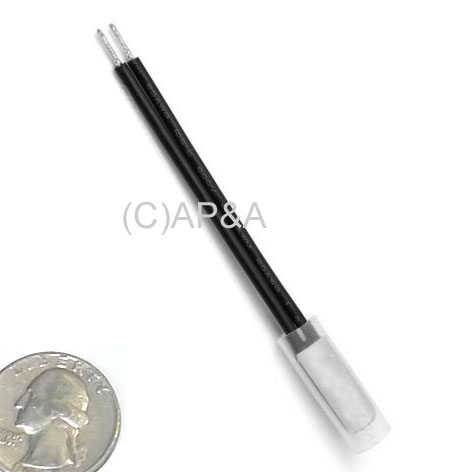

Small thermal breaker with wire leads. Great for protecting coils and surrounding parts from overheating.

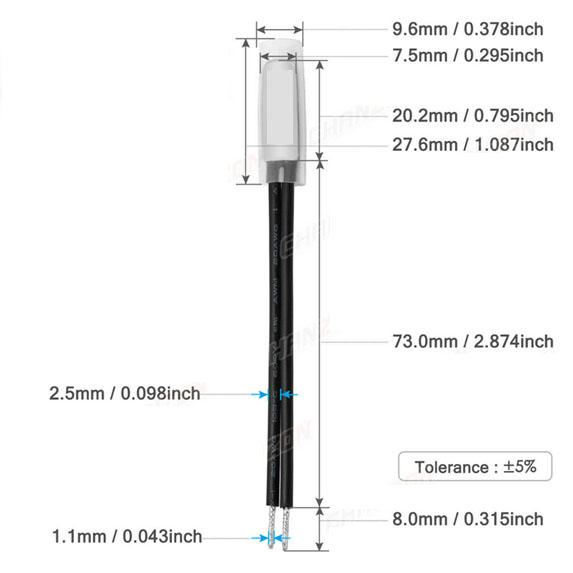

Head measures about 3/4 inch in length. Perfect size to mount on the side of any coil. Wire leads are about 3 inches long. See additional image below for more measurements.

Normally closed. Opens at 85 Celsius (185 Fahrenheit). +/- 5% tolerance. Maximum voltage 250vac. Maximum current 5 amps. Must be replaced after unit opens (not resettable).

Can be used on nearly any coil. Replaces # 08505 as used on some Jersey Jack Pinball coils.

INSTALLATION:
  • Head must be insulated (as shipped) and in full contact with surface of device being protected (does not function in open air).
  • Connects in series (in-line) with electrical device being protected.


Additional Images:
Click to Enlarge



NOTE: No returns on Electronics - all sales final.

  • Ask a question about this item

    Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
    JERSEY JACK: Willy Wonka
