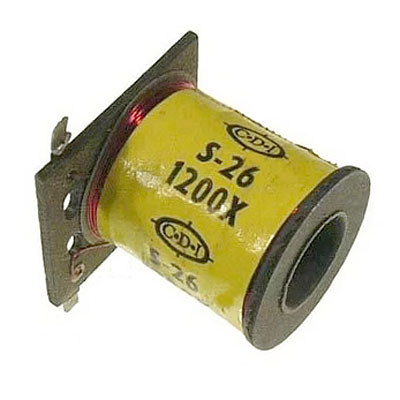

Coil - S-26-1200X - Without Sleeve (Chicago Coin / Stern):

Price: $27.79 each
Status: Non-stocked, special-order item. more info...
Part #: S-26-1200X-NS
Condition: New

Oversize coil with large 3/4-inch bore and side-mount solder lugs for some Chicago Coin (CDI) and early Stern electro-mechanical (EM) games.

Measures approx. 1-3/8 inches wide, 1-9/16 inches long (without sleeve).

Accepts 11/16-inch OD coil sleeve (not included- sold separately- order part # 56-0667-00).

Accepts coil plunger with diameter of approx. 19/32-inch (just under 5/8-inch).

This coil is commonly found on drop target banks to reset targets, relay bank reset mechanisms, and similar devices.

Approx. 11.2 ohms resistance.

NOTE: No returns on Coils & Coil Parts - all sales final.
