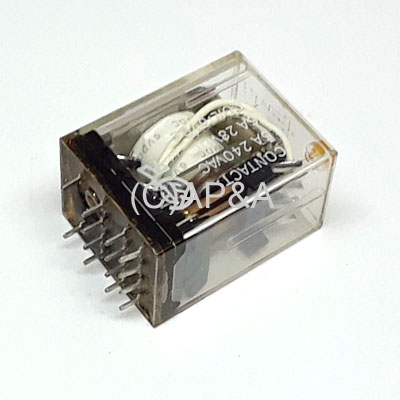

Cube Relay - 6vdc 4PDT 14-Pin Flipper Enable K1 / RLY1 (Bally / Williams / Data East):

Price: $24.99 each

Status: In Stock
(5 Available)

Order:



Part #: RELAY_WMS_K1
Condition: New
Replacement cube-style relay for flipper enable, as used in many Bally, Williams, and Data East electronic solid-state (SS) games. Replaces K1 and RLY1 relays in these games. Used in the following games (also see game listing below):
  • Williams Level 3, Level 4, Level 6, Level 6A, Level 7 games (1977-1984)
  • Williams System 9 games (1984-1985)
  • Bally / Williams System 11, 11A, 11B, 11C games (1986-1990)
  • Most Bally / Williams WPC-89 games (1990-1992)
      NOTE: Gilligans Island, Hurricane, and Machine: Bride of PinBot models using the # 5768-12243-00 model power/driver board specify using a 12-volt DPDT relay instead. See relay part # 5580-12782-00 if your game uses the 5768-12243-00 board.)
  • Data East games (1987-up)

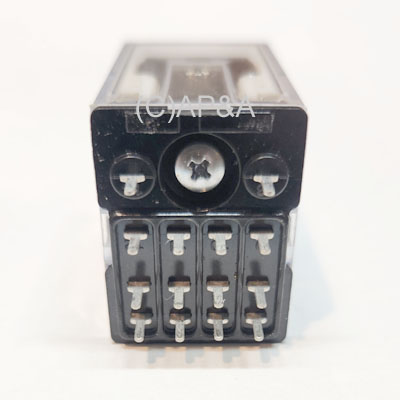

6vdc relay with 4-pole, double-throw contacts (4PDT). Contacts rated for use up to 5 amps at 125vdc or 250vac. Measures 21.5mm wide x 28mm long x 36mm tall.

14 through-hole solder pins on bottom of relay mount directly to board.

Replaces Williams part # 5A-8994, and Bally/Williams #s 5580-08994-00, and 5580-08994-01.

Images are samples only- actual item may vary slightly in appearance/specs.

NOTE: No returns on Electronics - all sales final.

  • Ask a question about this item

    Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
    BALLY: Addams Family, Black Rose, Bugs Bunnys Birthday Ball, Creature From the Black Lagoon, Doctor Who, Dr. Dude (System 11C models only), Elvira and the Party Monsters, Game Show, Gilligan's Island (SEE NOTE), Harley Davidson (Bally), Mousin Around, Party Zone, Pool Sharks, Radical!, Transporter the Rescue

    DATA EAST: ABC Monday Night Football, Back to the Future, Batman, Guns n Roses, Hook, Jurassic Park, Last Action Hero, Lethal Weapon 3, Maverick the Movie, Phantom of the Opera, Playboy (Data East), RoboCop, Rocky and Bullwinkle and Friends, Secret Service, Simpsons, Star Trek (Data East), Star Wars, Tales From the Crypt, Teenage Mutant Ninja Turtles, Time Machine, Tommy, Torpedo Alley, WWF Royal Rumble

    MIDWAY: Hot Shot basketball

    SEGA: Batman Forever, Baywatch, Frankenstein

    WILLIAMS: Algar, Alien Poker, Bad Cats, Banzai Run, Barracora, Big Guns, Black Knight, Black Knight 2000, Blackout, Comet, Contact, Cosmic Gunfight, Cyclone, Defender, Diner, Disco Fever, Earthshaker, F-14 Tomcat, Fire!, Firepower, Firepower II, Fish Tales, Flash, Funhouse, Getaway High Speed II, Gold Mine shuffle, Gorgar, Grand Lizard, High Speed, Hot Tip, Hurricane (SEE NOTE), Jokerz, Joust, Jungle Lord, Laser Ball, Laser Cue, Lucky Seven, Machine: Bride of PinBot (SEE NOTE), Millionaire, Pharaoh, Phoenix, PinBot, Pokerino, Police Force, Rat Race, Riverboat Gambler, Road Kings, Rollergames, Scorpion, SlugFest baseball, Solar Fire, Sorcerer, Space Shuttle, Space Station, Star Light, Stellar Wars, Swords of Fury, Taxi, Terminator 2, Thunderball, Time Fantasy, Time Warp, Tri Zone, Varkon, Warlok, Whirlwind, White Water, World Cup
