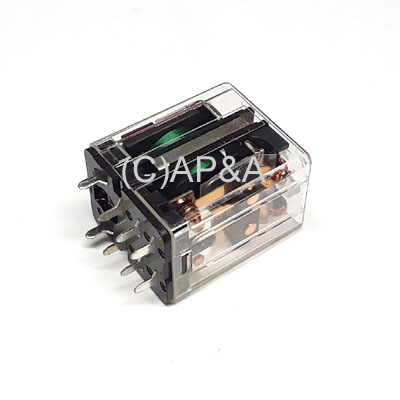

Cube Relay - 48vdc DPDT 8 PIN Terminals (LATER BOARDS) - Flipper Enable (K1) (Bally / Stern) (SEE NOTES):
Price: $23.99 each
Status: In Stock
(39 Available)
Part #: RELAY_BLY_K1P
Condition: New
|
|
|
PIN TERMINAL cube-style relay for original Solenoid Expander PC boards, and original Solenoid/Regulator PC boards (K1 flipper enable relay) in electronic solid-state (SS) Bally and Stern pinball games approx. 1979-1985, and Bally/Midway 6803 CPU boards approx. 1985-1989.
NOTES:
This is a commonly mis-ordered part, so please verify that your board takes this type of relay before ordering, as electronic parts are not returnable!

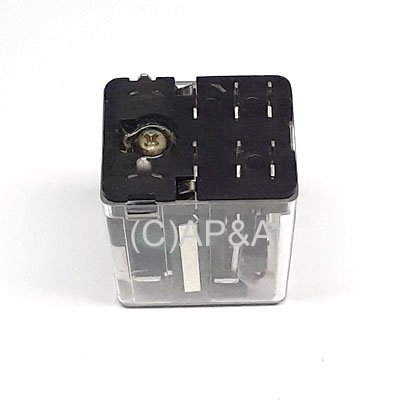

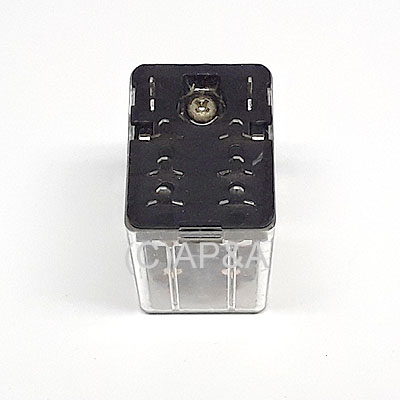

How to verify if this is the relay you need: Carefully compare the bottom side of your old relay (or the back of the board it's soldered on) to the first additional image below to see if the lug sizes and pattern match.
If so, you are ordering the right part.
If not, you may need part # RELAY_BLY_K1L instead. Further details:- THIS RELAY HAS 8 (EIGHT) SMALL PIN TERMINALS. See additional image below for pin spacing/measurements.
- This relay solders directly to the board (pcb-mount - see additional images below).
- This relay is commonly found in LATER-MODEL GAMES approx. 1979-1989.
- If the board in your game is not original, you may need a different relay. Please use the info above to visually verify.
- If you have a board with a relay socket, and/or require a relay with larger LUG TERMINALS, order # RELAY_BLY_K1L instead.

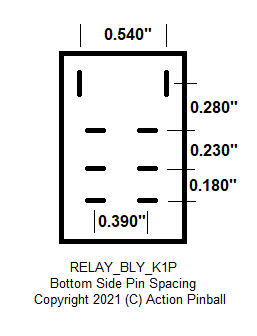

- Pin terminals on this relay are offset: switch terminals (6) measure approx. 0.390 inch apart (center-to-center), and coil terminals (2) measure approx. 0.540 inch apart (center-to-center). See additional image below for pin spacing/measurements.
48vdc relay with double-pole, double-throw contacts (DPDT). Contacts rated up to 10 amps at 28vdc or 240vac. Relay coil measures 2.6k ohms resistance. Measures 21mm wide x 27mm long x 34mm tall. 8 solder pin terminals on bottom of relay mount directly to PC board.
Replaces Bally/Midway part #s E-146-795, E-00146-0795, and 114E-00001-0011.
