Click to Enlarge

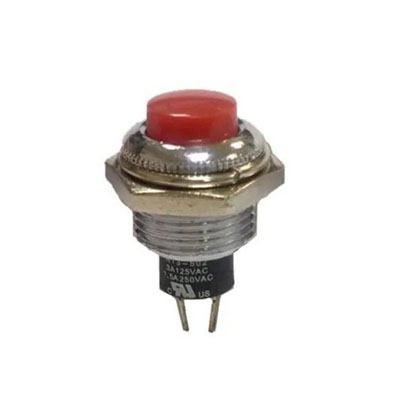

Pushbutton Switch - Round SPST OFF-(ON) RED:

Price: $6.99 each

Status: In Stock
(3 Available)

Order:



Part #: R13-502MA-05-BR
Condition: New
Round pushbutton switch assembly with red actuator. Common video game pushbutton for fire trigger, service, credits, etc.
  • Single pole/single throw contacts (SPST).
  • Normally off, momentary on.
  • 2 solder terminals.
  • Metal threaded bezel with retaining nut and washer.
  • Red plastic actuator.
  • Rated 3A at 125vac, 1.5A at 250vac.
  • Bezel measures 9/16 inch diameter (widest point).
  • Threaded portion measures 1/2 inch overall length, 7/16 inch diameter (requires 7/16 or 1/2 inch diameter mounting hole).
  • Overall height approx. 1 inch.


  • Ask a question about this item

    Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
    INJOY MOTION: Allied Tank Attack
