Bally Repair Procedures Manual FO-560-2 (ORIGINAL):

Price: $25.00 each

Status: In Stock
(1 Available)

Order:



Part #: PM0455
Condition: Used (Original)

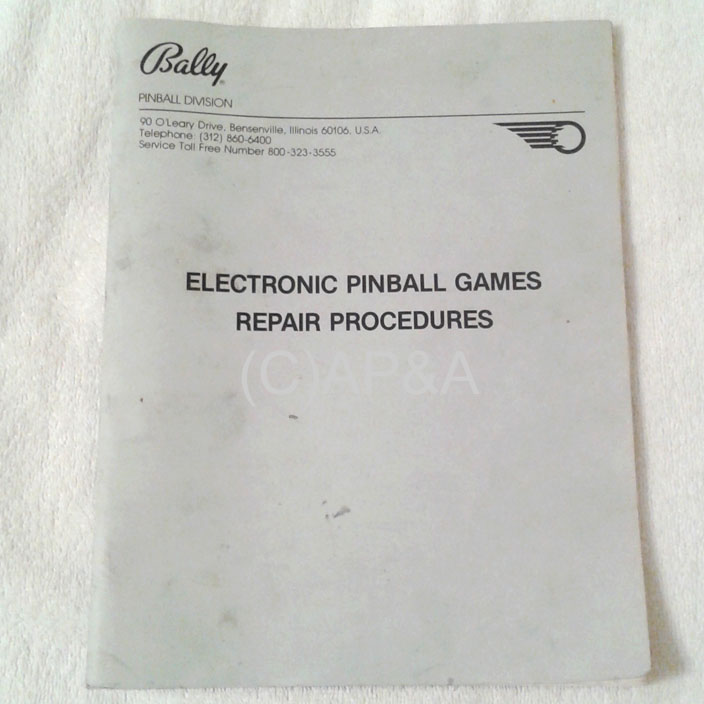

80 pages. Electronic Pinball Games Repair Procedures (January 1980) for Bally solid-state pinball games 1977-1985. This shop manual covers most circuit boards and diagnostic procedures for early Bally electronic (solid-state) pinball games. Provides troubleshooting procedures and theory-of-operation info to help diagnose and pinpoint problems in these classic games.

Used original manual in very good condition. Some light wear/tear on front/back covers from normal use. No handwriting noticed on inside pages on quick flip-through. Factory part # FO-560-2.
