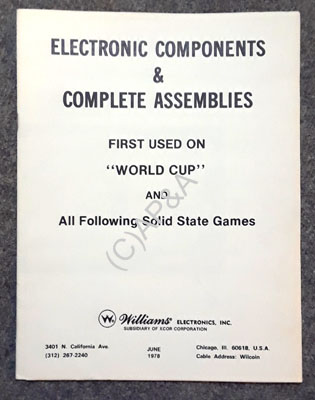

Click to Enlarge

World Cup (Williams) Electronic Components and Assemblies Manual (ORIGINAL - USED):

Price: $15.00 each
Status: In Stock
(3 Available)

Order:

Part #: PM0436
Condition: Used (Original)

Used 19 page manual with a listing of electronic components and assemblies (circuit boards) used on World Cup, and later solid-state games.

Includes fold-out 11x17 inch diagrams with part listings for Master Score Display D-8000, Power Supply, Driver Board, and MPU Board.

Diagrams with parts listings are also included for Sound Board, Slave Score Displays, backbox filter capacitor & rectifiers, cable connectors, main cabinet mech (tilt) panel, and coin door.

Also includes then-current prices for listed parts, as sold by Williams.

Used manuals in good condition. Some light smudges and occasional handwriting may be present on some pages from past use. Image is sample only- actual item may vary slightly in appearance.

NOTE: No returns on Paperwork Items - all sales final.

NOTE: No warranty or returns on used items. Used items are sold as-is, and all sales are final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
WILLIAMS: World Cup
