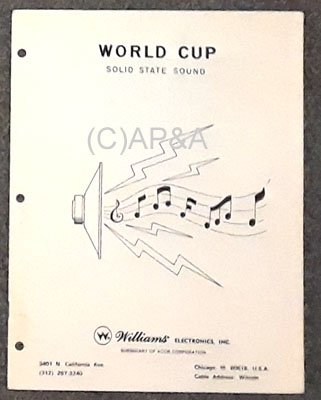

Click to Enlarge

World Cup (Williams) Solid State Sound Manual (ORIGINAL - USED):

Price: $7.50 each
Status: In Stock
(2 Available)

Order:

Part #: PM0435
Condition: Used (Original)

Used 9-page operation manual for electronic solid-state sound system used in Williams World Cup pinball.

Includes an introduction to the overall system, operation info, diagnostics info, troubleshooting info, sound and solenoid circuit info, and cable interconnect charts with pinouts and wire colors.

Used original manual in good condition. A few light stains/smudges on covers. No handwriting on pages. Image is sample only- actual item may vary slightly in appearance.

NOTE: No returns on Paperwork Items - all sales final.

NOTE: No warranty or returns on used items. Used items are sold as-is, and all sales are final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
WILLIAMS: World Cup
