Fireball Classic (Bally) Game Manual & Schematics Set (2pcs):

Price: $30.44 set

Status: In Stock


Part #: PM0144
Condition: New (Reprint)

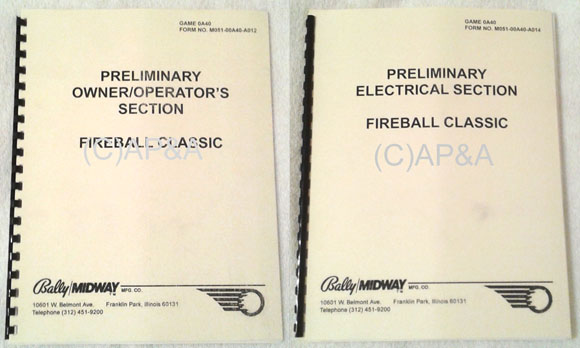

Set of both (2) manuals for Bally Fireball Classic pinball- Operation Manual (27 pages) and Electrical Manual (26 pages). Operation manual includes game setup, adjustments, and operation. Electrical manual includes electronics information and fold-out schematics and wiring diagrams. Reprint manuals in new condition. Original factory part # M051-00A40-A012 (operation manual) and # M051-00A40-A014 (electrical manual).

NOTE: No returns on Paperwork Items - all sales final.

  • Ask a question about this item

    Used In The Following Games:
    BALLY: Fireball Classic
