Williams System 9 Test Fixture Service / Repair Manual 16-539-101 (2nd Edition) (Reprint Copy) (SEE NOTE):

Price: $17.75 each
Status: In Stock

Order:

Part #: PM0087
Condition: New (Copy)

Williams publication # 16-539-101 (2nd edition).

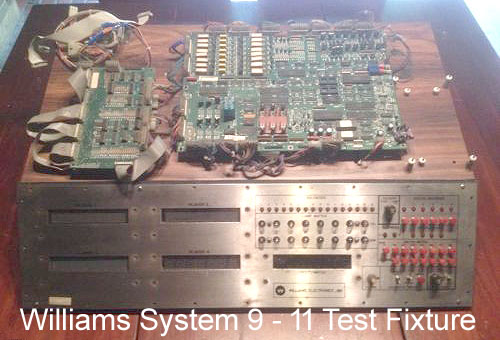

This is the 7-page instruction manual for the Williams System 9 test fixture which looks like this:

Click to Enlarge

These text fixtures were supplied by the Williams factory to their distributors for testing and repairing circuit boards for Williams System 9 pinball games.

This manual supersedes the earlier 1st Edition Manual

If you are lucky enough to have a functional System 9 test fixture, this is the instruction manual you will need to operate it.

Many original System 9 test fixtures were modified so they could accommodate later System 11 board sets, so much of the information in this manual also applies to testers modified for System 11 boards.

System 8 boards can also be tested on the System 9 fixture, so this manual will aid in testing those boards as well (manual includes a section on System 8 board testing).

NOTE: If you do NOT have a Williams System 9 Test Fixture, then this manual will not be of any use to you- it does not help operate or repair pinball machines. It contains only instructions for operating the test fixture unit.

Black and white professional photocopy with Cerlox binding.

Additional Images:
Click to Enlarge

NOTE: No returns on Paperwork Items - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
WILLIAMS: Comet, Grand Lizard, Space Shuttle
