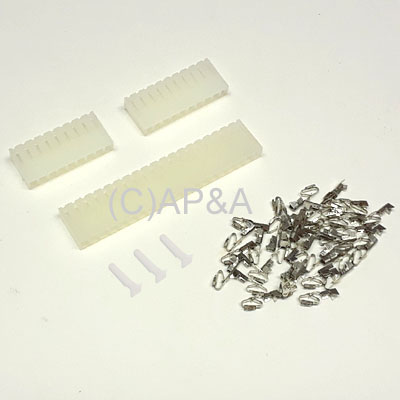

Power Supply Connector Kit - Cable Housings & Pins (Bally AS-2518-49):

Price: $11.03 each

Status: In Stock
(17 Available)

Order:



Part #: KITBLYPS5
Condition: New
Wiring harness cable housing set with crimp/solder pins for use on some early Bally electronic solid-state (SS) pinball games (see game listing below). Used on Bally board # AS-2518-49. May also be used with some aftermarket replacement boards that have an 9-pin J1 connector, like original boards did.

Kit includes the following parts:Instructions are not included. Use of this kit requires moderate experience & skills with crimp/solder connectors and Molex connector housings, and the appropriate tools to do the job correctly. Replacing connector pins is intricate work, and must be done with expertise and precision. Failure to do so may result in game inoperability, and/or damage to internal components.

Recommended tools / supplies:
  • Soldering kit, part # SI-30-KIT
  • Crimper / stripper tool, part # HCT9900
  • Pin extractor tool, part # EXT156
  • DeOxit antioxidant/lubricant, part # D100L
  • 4-inch wire ties, part # TIEWRAP4


Additional Images:



NOTE: No returns on Electronics - all sales final.

  • Ask a question about this item

    Used In The Following Games:
    BALLY: Future Spa, KISS, Space Invaders
