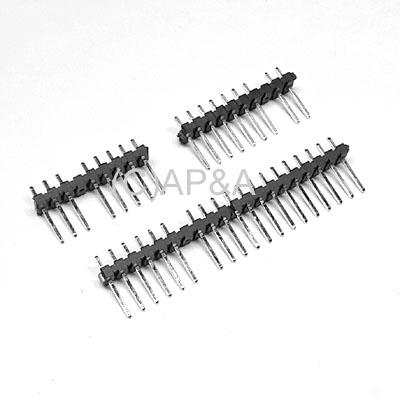

Power Supply Connector Kit - PCB Header Pins (Bally AS-2518-49):

Price: $7.96 each
Status: In Stock

Order:

Part #: KITBLYPS3
Condition: New

PC board male header pin set for some early Bally electronic solid-state (SS) pinball games (see game listing below).

Fits factory original Bally power supply board # AS-2518-49.

May also work with some aftermarket replacement boards that have a 9-pin J1 connector, like factory original boards did.

Kit includes the following parts:

9-pin J1 header pin set # 26-48-1091
10-pin J2 header pin set # 26-48-1101
20-pin J3 header pin set (10-pin x 2pcs) # 26-48-1101

Instructions are not included. Installation of this kit requires moderate skills with circuit board work, circuit board soldering/desoldering, and necessary tools/equipment.

Recommended tools / supplies:

40-watt (or higher) soldering iron
Desoldering braid (part # 1811-5F)
Solder (part # SOLDER_T)
DeOxit antioxidant/lubricant (part # D100L)

Additional Images:
Click to Enlarge

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Future Spa, KISS, Space Invaders
