Click to Enlarge
T-Nut - #6-32 (6-PACK) (SEE NOTE):

Price: $1.50 set/6

Status: In Stock
(24 Available)

Order:



Part #: HWR01-060603-6PK
Condition: New

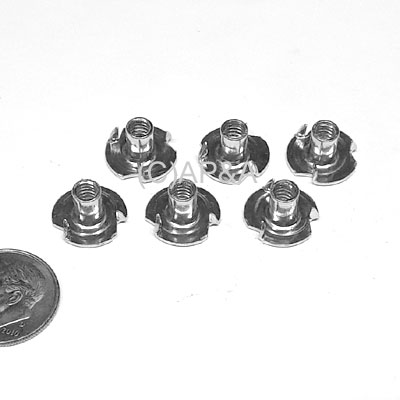

Set of 6 T-nuts. Accepts #6 diameter screw, 32 thread pitch. Steel, zinc-plated.

For older games with smaller #6-32 screws/studs.

Replaces Bally # M-108-15 and Bally/Williams # 4406-01118-00.

NOTE: Vintage Bally Games: Original T-nuts on older Bally games (1970s and early/mid 1980s) had a slightly longer neck and were able to accommodate slightly shorter machine-thread screws and studs from the top side of the playfield.

Longer-neck T-nuts are no longer made, and the ones we sell are current industry standard (slightly shorter than originals by maybe 1/16 inch or so...)

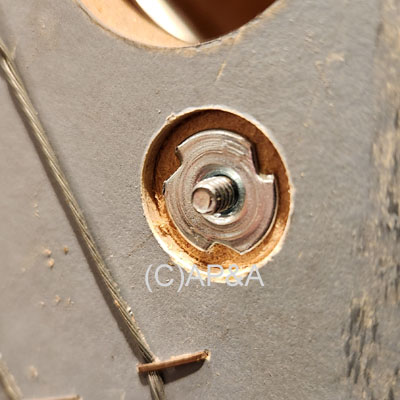

If you are not able to get a screw or stud to thread into one of these standard T-nuts, you may need to use a longer screw, or drill a slight recess into the bottom side of the playfield- slightly larger than the diameter of the T-nut- to allow the T-nut to sit further into the playfield wood and more adequately grip the threads of the screw/stud. For doing this, we recommend using a 5/8 inch diameter Forstner bit (or similar drill bit) to a depth of 1/8 inch or so. See additional image below for example.

Additional Images:
Click to Enlarge



  • Ask a question about this item

    Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
    BALLY: Addams Family, Addams Family Gold, Aladdin's Castle, Black Jack (electronic), Black Rose, Boomerang, Bow and Arrow, Bugs Bunnys Birthday Ball, Capt. Fantastic, Captain Fantastic (home model), Corvette, Creature From the Black Lagoon, Doctor Who, Dolly Parton, Dr. Dude, Eight Ball, Evel Knievel (electro-mechanical), Evel Knievel (electronic), Fireball (home model), Flip Flop!, Freedom (electro-mechanical), Freedom (electronic), Future Spa, Galaxy Ranger, Gilligans Island, Hang Glider, Harlem Globetrotters, Harley Davidson (Bally), Hi Deal, Hokus Pokus, Kick Off, KISS (Bally), Lost World, Mata Hari (electronic), Night Rider (electronic), Nitro Ground Shaker, Old Chicago, Paragon, Party Zone, Playboy (Bally), Popeye Saves the Earth, Power Play, Quarterback, Radical!, Shadow, Silverball Mania, Six Million Dollar Man, Skateball, Space Invaders, Star Trek (Bally), Strikes and Spares, Supersonic, Theatre of Magic, Twilight Zone, Voltan, more

    MIDWAY: Hot Shots (basketball)

    WILLIAMS: Algar, Alien Poker, Black Knight, Black Knight 2000, Blackout, Congo, Contact, Cosmic Gunfight, Demolition Man, Disco Fever, Dracula (Williams), Firepower, Firepower II, Fish Tales, Flash, Flintstones, Funhouse, Getaway High Speed II, Gorgar, Grand Lizard, High Speed, Hot Tip, Hurricane, Indiana Jones (Williams), Johnny Mnemonic, Jungle Lord, Laser Ball, Lucky Seven, Machine: Bride of PinBot, No Fear, Pharoah, Phoenix (1978), Pokerino, Riverboat Gambler, Road Kings, Road Show, Scorpion, Solar Fire, Space Shuttle, Star Trek: The Next Generation, Stellar Wars, Terminator 2, Time Fantasy, Time Warp, Tri Zone, Warlok, White Water, World Cup, more
