Eight Ball Deluxe Limited Edition LED Tube Kit (Fluorescent Upgrade) - 12-Inch Soft White:

Price: $30.70 each

Status: In Stock
(1 Available)



Part #: FLUOR_12_LED_KIT
Condition: New
LED upgrade kit for 12-inch fluorescent tube used in backbox for backglass lighting in Bally Eight Ball Deluxe Limited Edition pinball.

This kit includes:
  • Modern shatter-proof LED tube
  • Wiring harness adapter
  • Lamp socket mounting screws (2)
  • Warning tags (2)
Installation instructions are online and can be found at this link (with pictures!)

Easy installation. No wiring modifications, wire cutting, or splicing needed. Easily removable/reversible any time if you ever want to go back to original fluorescent.

LED tube in this kit takes the place of your old original fluorescent tube and illuminates almost instantly when power is turned on- no delayed waiting time, no glowing/flickering, etc. Other benefits including average 50,000 hour lifespan, less energy consumption, lower heat, and no UV emissions that typically damage nearby components, wiring, and wiring connectors.

Soft white color tone- between warm and neutral (3000K lumens - see additional image below for example). Slightly larger (3/4-inch) than original T5 diameter (9/16-inch). 4-watts.

INSTALLATION NOTES: Installation instructions are online and can be found at this link (with pictures!) Original fluorescent starter and ballast are bypassed using included wiring harness adapter (no wire cutting needed).

This LED tube is designed for double-ended power, meaning hot and neutral power are applied at either end. If using in something other than the Bally games listed below, you must confirm that you have a shunted socket on either end of the tube for power, otherwise this lamp will not work, and may be damaged. See additional image below. Bally games listed below have non-shunted sockets, but the plug-in wiring harness adapter included in this kit allows this bulb to work in the existing non-shunted sockets.

USE IN OTHER GAMES: Mr. & Mrs. Pac-Man and Rapid Fire also use the 12-inch fluorescent lamps for backglass illumination, but we have not as yet had the opportunity to test-fit this LED tube kit in either of those games, so do not guarantee operation/fit in them at this time.

This is considered an electronic part and is not eligible for return, refund, or exchange- all sales are final.

Additional Images:
Click to Enlarge

NOTE: No returns on Lighting - all sales final.

  • Ask a question about this item

    Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)

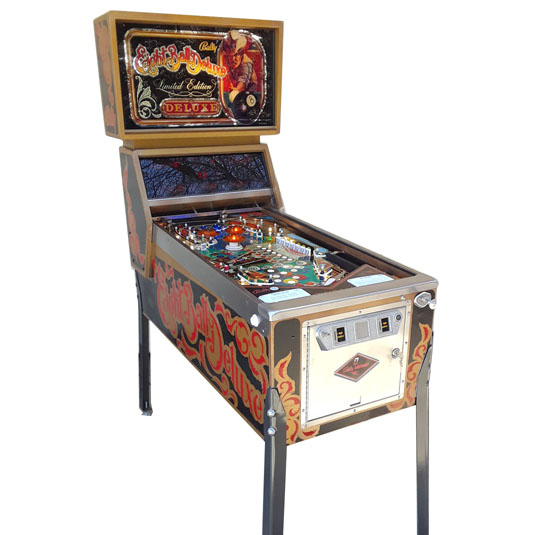

    BALLY: Eight Ball Deluxe Limited Edition
