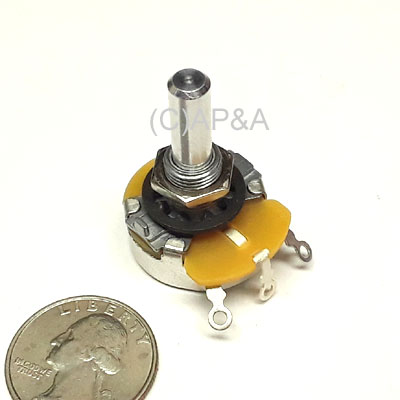

Potentiometer - 100 Ohm 5 Watt Rotary Linear Taper (Bally):

Price: $10.49 each
Status: In Stock
(6 Available)

Order:

Part #: E-599-19
Condition: New

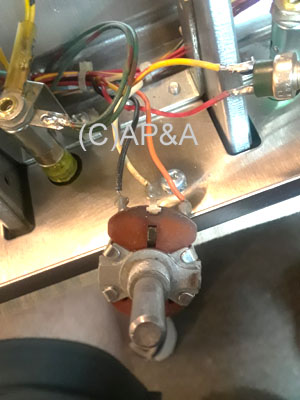

Volume control potentiometer used in many vintage Bally electronic solid-state (SS) games, approx. 1981 and up. Mounts on bracket inside coin door. 100 ohm, 5-watt. Includes mounting nut and washer.

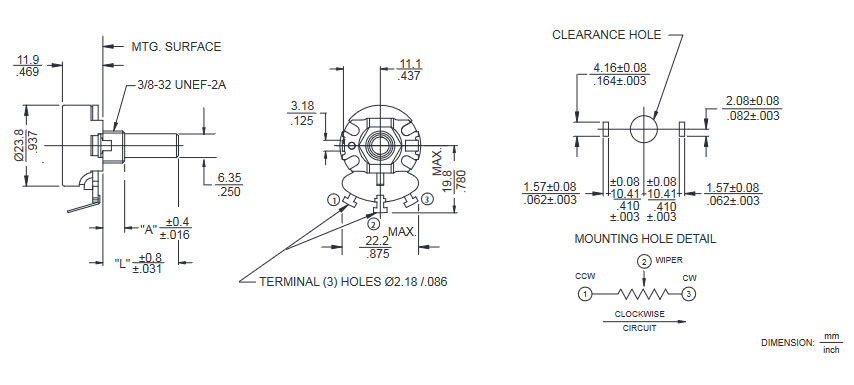

Shaft height is 7/8 inch (including threaded portion). Shaft is 1/4 inch diameter. Body measures 29/32 inch diameter and 7/16 inch thick. See additional image below for specs.

Replaces Bally # E-599-19 and Bally/Midway # 105E-00003-0001.

Additional Images:
Click to Enlarge

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Black Belt, Black Pyramid, Blackwater 100, BMX, Centaur, Centaur II, City Slicker, Cybernaut, Dungeons & Dragons, Eight Ball Deluxe, Eight Ball Deluxe Limited Edition, Elektra, Embryon, Escape From the Lost World, Fathom, Fireball Classic, Fireball II, Flash Gordon, Hardbody, Heavy Metal Meltdown, Kings of Steel, Lady Luck (Bally), Medusa, Motordome, Mr. & Mrs. Pac-Man, Rapid Fire (Bally), Speakeasy, Speakeasy 4, Special Force, Spectrum, Spy Hunter, Strange Science, Vector, X's & O's, Xenon
