Magnet Core Assembly w/o Coil (Sega / Stern):

Price: $44.37 each
Status: Non-stocked, special-order item. more info...
Part #: CORE_ASSY1
Condition: New

Magnet core bracket assembly for some later-model Stern Pinball games. Can substitute in some older Bally, Williams, and Sega games that use this same adjustable mechanism.

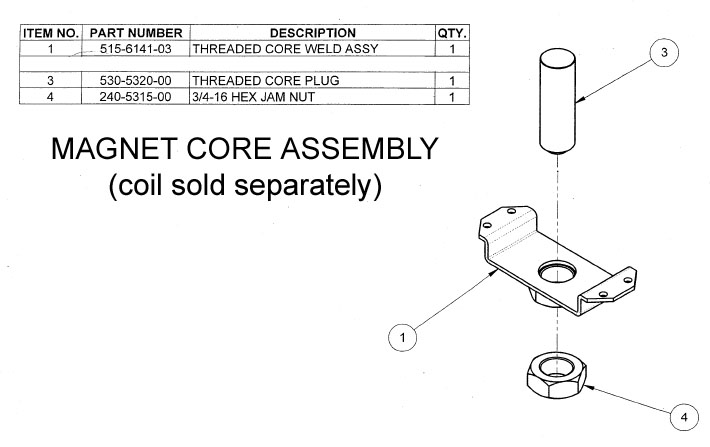

Includes the following parts:

Bracket # 515-6141-03
Threaded/adjustable core # 530-5320-00
Lock nut # 240-5315-00
Non-permanent thread locker compound

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Shadow, Twilight Zone

STERN: Avatar, Avatar Limited Edition, Indiana Jones (Stern), Metallica Premium, Metallica Pro, Ripley's Believe it or Not!, Spider-Man (Stern), Spider-Man Vault Edition (Stern), Star Trek Pro (Stern), X-Men LE Wolverine

WILLIAMS: Dirty Harry
