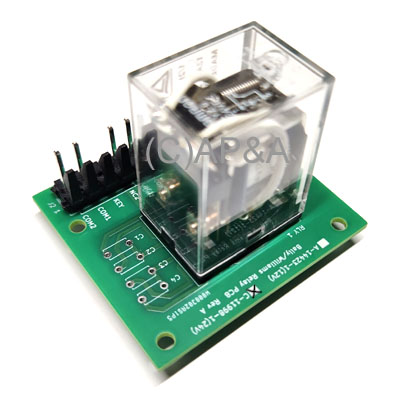

Relay Board - 24V- Coil and General Illumination (Bally/Williams):

Price: $55.99 each
Status: Temporarily out- please check back... more info...
Part #: C-11998-1
Condition: New

Relay board for controlling coils, motors, and/or general illumination lights in many Bally and Williams games from late 1980s and early 1990s.

New aftermarket replacement for original obsolete factory part.

Relay on this board replaces Bally/Williams # 5580-09555-01 (24 volt cube relay).

Need the 12-volt version? Order part # A-14423.

Image is sample only- actual item may vary slightly in appearance.

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Bugs Bunnys Birthday Ball, Dr. Dude, Game Show, Pool Sharks, Radical!

WILLIAMS: Bad Cats, Black Knight 2000, Diner, Earthshaker, Jokerz!, Police Force, Riverboat Gambler, Rollergames, Space Station, Whirlwind
