Click to Enlarge

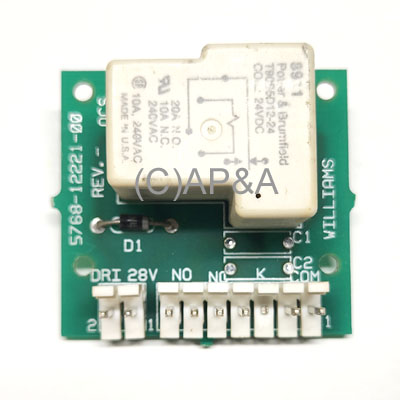

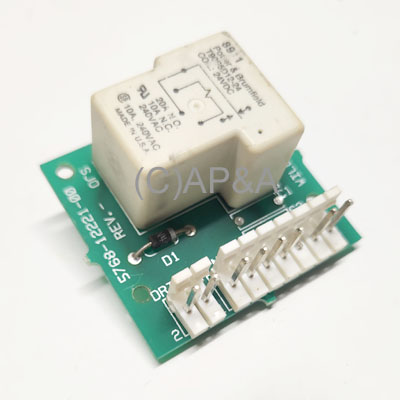

Relay Board - 24V- Coil & General Illumination (Williams):

Price:

Status: Out of Stock - Discontinued  more info...
Part #: C-11902
Condition: New
Discontinued - use # C-11998 as replacement.

Relay board for controlling coils and/or general illumination lights, as used in some Williams games in late 1980s and early 1990s. Relay on this board replaces Bally/Williams # 5580-09555-01 (24 volt cube relay).

NOTE: No returns on Electronics - all sales final.

  • Ask a question about this item

    Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
    WILLIAMS: Banzai Run, Black Knight 2000, Earthshaker, Jokerz!, Space Station, Whirlwind
