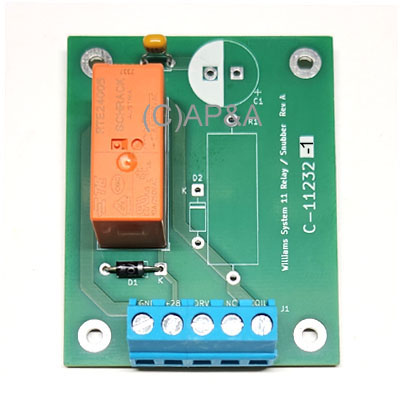

Click to Enlarge

Relay / Snubber Board Assy - 24 Volt (Bally/Williams) (SEE NOTES):

Price: $33.39 each
Status: Temporarily out- please check back... more info...
Part #: C-11232-1R
Condition: New

Relay board for controlling AC circuits such as motors and general illumination in several makes/models of games from late 1980s and early 1990s (see notes, and game listing below).

New aftermarket replacement for original obsolete factory part. Replaces original factory part # C-11232-1.

Also replaces Data East/Sega/Stern # 520-5010-00.

Features:

All modern components and new re-designed circuit board.
Screw terminal strip for easy wire attachment (no soldering required).
Smaller, more compact 24-volt relay with contacts rated at 8 amps at 250vac. Relay replaces Bally/Williams # 5580-09555-01 (24 volt cube relay).
Easy-to-replace through-hole components (no surface-mount).

NOTES:

This is a modern reproduction part that fits/functions the same as the original part, but has a slightly different layout and look.
Image is sample only- size/shape/color of some electronic components may vary depending on current availability.
Please verify you are ordering the correct part before purchasing, as this electronic item is not returnable.
Mounting supports/standoffs sold separately (4 required).

Application Note:

C-11232: Most common version. For lower power DC coils, flashlamps, and possible other devices.
C-11232-1: (this part) For AC circuits such as motors and general illumination. Ships with installed components as pictured.
C-11232-2: For higher power DCcoils.

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
WILLIAMS: PinBot, more
