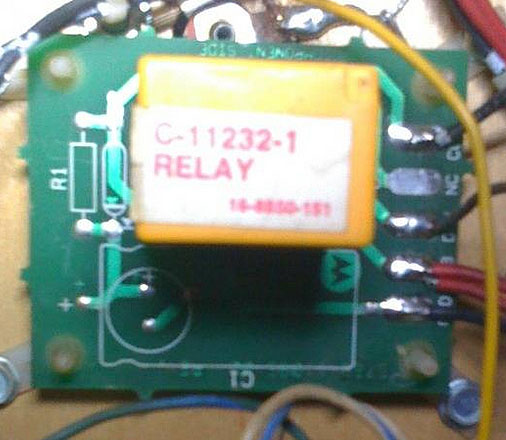

Relay Snubber Board Assy - 24 Volt (Bally/Williams):
Price:
Status: Out of Stock - Discontinued more info...
Part #: C-11232-1
Condition: New
|
|
|
Discontinued - substitute # C-11232-1R.
Relay board for controlling AC motor circuits and/or AC general illumination lights in many Bally and Williams games from late 1980s and early 1990s. 24-volt relay.
Replaces Bally / Williams # 5580-09555-01 (relay) and relay with board assembly # C-11232-1. Also replaces Data East/Sega/Stern # 520-5010-00.
Application Note:- C-11232: For lower power DC coils, flashlamps, and other possible DC devices. Includes C1, D2, R1.
- C-11232-1: For AC circuits such as motors and general illumination. Includes C2. No C1, D2, R1.
- C-11232-2: For higher power coils. Includes C2, R1. No C1, D2.
NOTE: No returns on Electronics - all sales final.
Ask a question about this item
Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
WILLIAMS: PinBot, more
|
