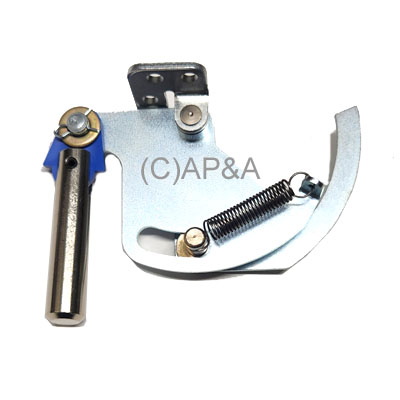

Ball Eject / Release Kicker Assembly (Williams):

Price: $61.56 each
Status: In Stock
(2 Available)

Order:

Part #: B-7472-8
Condition: New

Ball eject / release kicker assembly for many older Williams games. This assembly kicks balls out of the main runway trough to the shooter lane (ball release), or a multiball lockup trough elsewhere on the playfield. Kicker arm assembly only, as shown. Does not include coil bracket sub-assembly. This mechanism has a shorter coil plunger, so is slightly stronger than kicker # B-7472-7.

Includes the following parts:

Spring plate assembly - left # A-6949-L
Eject cam assembly # A-8247
Pivot bracket- long- right-hand mount # A-8268
Spring # 10-362
Flat washer- thick- # 4700-00030-00
Flat washer- thin- # 4700-00103-00
Retainer clip (2) # 12-6227
Coil plunger & link- 2 inch # 515-5338-00

Additional Images:
Click to Enlarge

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
WILLIAMS: Barracora, Black Knight, Cosmic Gunfight, Firepower, Firepower II, Jungle Lord, Pharaoh, Scorpion, Solar Fire, Sorcerer, more
