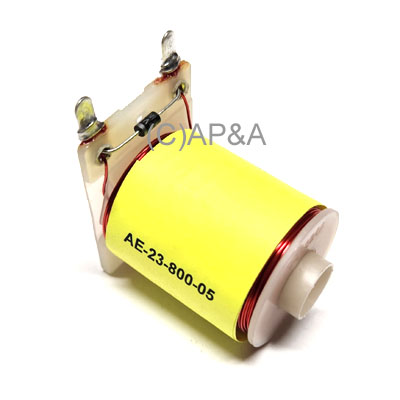

Coil - AE-23-800-05 (Bally/Williams):

Price: $18.38 each
Status: In Stock
(43 Available)

Order:

Part #: AE-23-800-05
Condition: New

General purpose coil for many devices. Includes diode mounted on front (top) of solder lugs. Approx. 4.2 ohms.

Includes standard coil sleeve # 03-7066. Order flanged coil sleeve # 03-7067 separately if device you are installing coil in requires a flanged sleeve (up-kicker, scoop kickout, etc.)

NOTE: No returns on Coils & Coil Parts - all sales final.

Ask a question about this item

Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
WILLIAMS: Comet (1985), F-14 Tomcat, Fire!, Grand Lizard, High Speed, Millionaire, PinBot, Road Kings, Sorcerer, Space Shuttle
