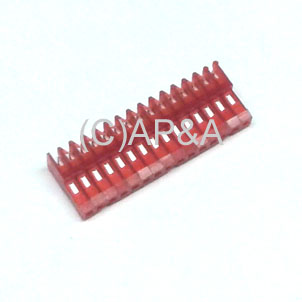

Connector Housing - 15-Position IDC - 0.100 Inch Spacing:
Price: $2.19 each
Status: In Stock
(1 Available)
Part #: A31063-15
Condition: New
|
|
|
Connector housing, 15-position, 0.100-inch spacing, IDC type (Insulation Displacement Connector).
IDC housings have built-in pins, and wires are pressed or staked into the back of the housing to secure.
These housings accommodate wires in the range of 16-22 AWG (ie: most all common pinball and video game applications).
Locking Ramp: IDC connector housings come with locking ramp tabs molded in, which will lock into place on corresponding header pin units that have friction lock backing. Housings with locking ramp can also be installed with pin units that have no backing for locking ramps, and vice-versa.
Replaces Bally/Williams # 5792-12116-15.
NOTE: No returns on Electronics - all sales final.
Ask a question about this item
Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Addams Family, Addams Family Gold, Black Rose, Eight Ball Deluxe, Fathom, Flash Gordon, Medusa, Revenge From Mars, Vector, Xenon, more
WILLIAMS: Slugfest, Star Wars: Episode 1
|
