Microswitch and Bracket Assembly - Replacement (Bally/Williams) (SEE NOTE):

Price: $17.45 each
Status: In Stock
(4 Available)

Order:

Part #: A-8659-1
Condition: New

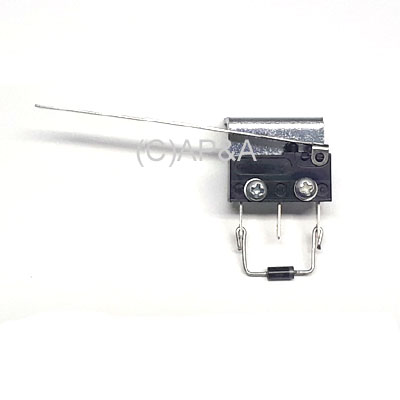

New replacement microswitch assembly with mounting bracket. Replaces obsolete/discontinued # A-8659.

Commonly found on rightmost position ball trough switch in older Williams games with multi-ball (see game listing below).

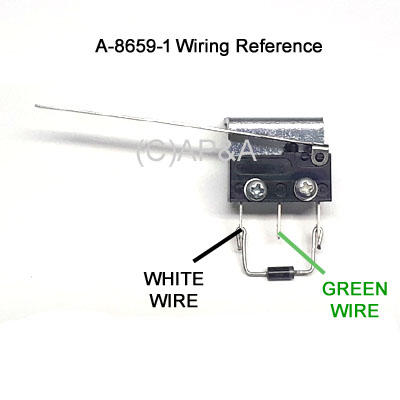

NOTE: This new replacement switch has the diode already on the switch lugs (rather than attached to a remote solder lug, as the old switch did). Both wires connect directly to the new switch (see additional image below for wiring reference).

Additional Images:
Click to Enlarge

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
WILLIAMS: Black Knight (models fitted with microswitches), Cosmic Gunfight, Fire!, Jungle Lord, Pharaoh, Solar Fire, Sorcerer, Road Kings, more
