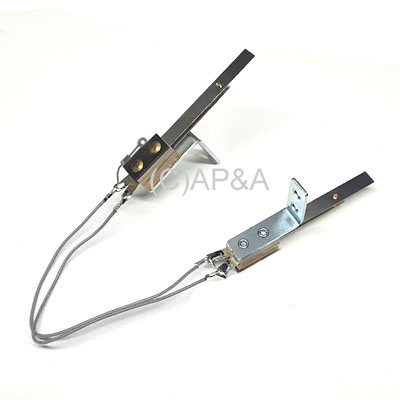

Cactus Canyon (Bally) Leaf Switch Set w/ Brackets and Diode - Slingshot (2pcs) - 3-Lug Bracket Reversed:

Price: $31.95 set
Status: In Stock
(9 Available)

Order:

Part #: A-23146
Condition: New

Slingshot kicker switch assembly for Bally Cactus Canyon pinball. Includes 2-leaf switch with front-mount bracket # A-17800 and 3-leaf switch with diode and rear-mount bracket # A-20979 with connecting wires between.

SWITCH MEASUREMENTS: Overall length: 3-1/16 inches. Length of long blade out from switch stack: 1-15/16 inches. Length of short blade out from switch stack: 1-3/8 inches. Contact points 1-7/32 inch out from switch stack. Switch stack body: 3/4 inches long x 3/8 wide x 3/8 high. Screw mounting holes 1/8 inch diameter, 3/8 inch center-to-center.

INSTALLATION NOTE: Switch with diode will connect to existing wiring (green and white wires) with white wire going to lug with diodes anode (non-banded end), and green wire going to the unused lug on the switch.

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Cactus Canyon
