Motor and Gearbox Assembly - 30 Volts 10 RPM - SPEC 2234 (Bally/Williams/Midway):

Price: $98.99 each
Status: In Stock
(3 Available)

Order:

Part #: A-18318_WMS
Condition: New

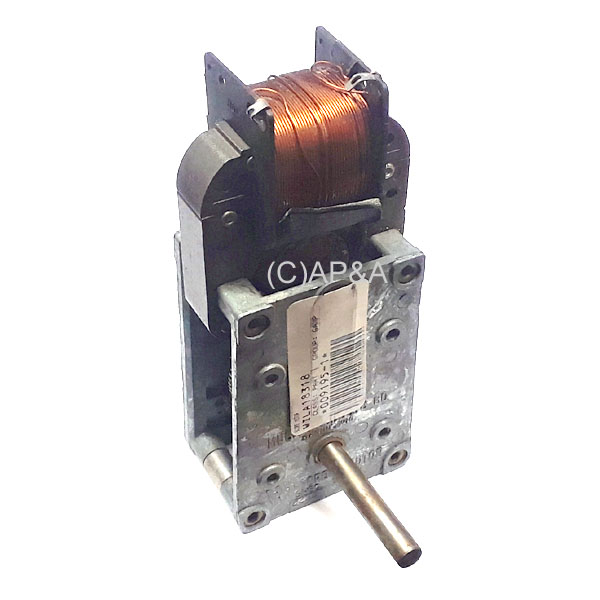

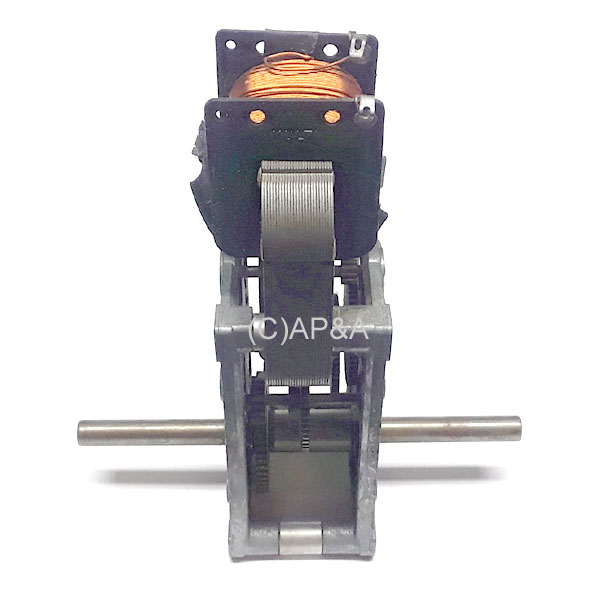

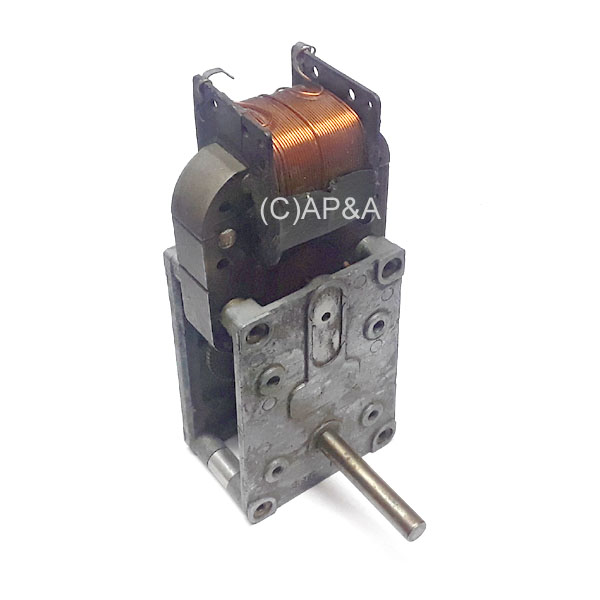

Motor and gearbox assembly. 30 volts AC, 10 RPM. Shaft is 5/16 inch diameter and sticks out from gearbox 1-3/4 inches on either side. Shaft is 5-1/4 overall length end to end. 5-5/8 inches overall height. Gearbox has 4 threaded screw mounting holes on either side for #8-32 screws. Screw holes are 1-9/16 inches apart center-to-center (across), and 1-5/8 inches apart center-to-center (up/down). Manufactured by Multi Products, Spec 2234.
