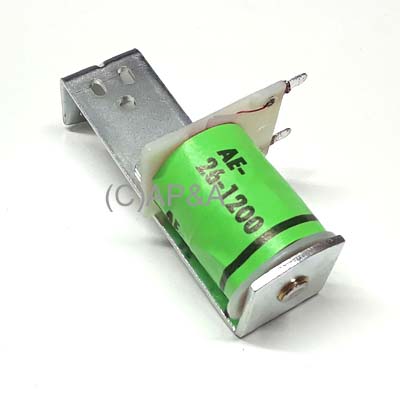

Coil and Bracket Assembly (Bally/Williams):

Price: $34.68 each
Status: In Stock
(6 Available)

Selection: (Click to Select)
Order:

Part #: A-17809
Condition: New

Coil and bracket assembly for some later-model Bally and Williams games (see game listing below).

Available with or without diode across coil lugs (select above when ordering- ships WITHOUT diode by default). Games that came with this assembly from the factory do not require a diode across the coil lugs. If you are installing this assembly in a different game that does require a coil diode, please select the option above for WITH DIODE.

Includes the following parts:

Mounting bracket # A-17808
Coil # AE-26-1200
Coil retaining bracket # 01-8-508-S
Screws (2) # HWR02-100604
Nuts (2) # HWR01-010600

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Popeye Saves the Earth

WILLIAMS: Demolition Man
