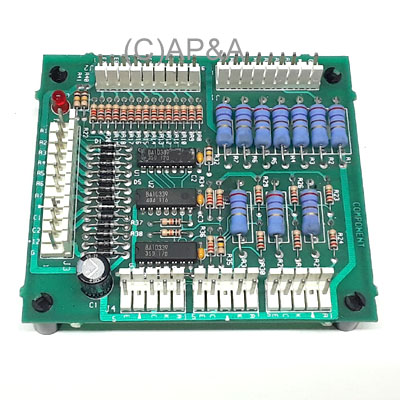

10 Opto Switch Driver PCB Assembly NOS (Bally/Williams):

Price: $149.99 each
Status: In Stock
(1 Available)

Order:

Part #: A-15745
Condition: New

Factory-original NOS (new old stock) part. 10 opto switch driver PCB assembly for some Bally and Williams games (see game listing below).

Substitute for part #s A-15430, A-18159.1, and A-20246. Populated replacement for bare PC board #s 5768-13194-01 and 5768-14075-00.

Original factory board A-15475 is the same as A-15430, but shipped from the factory with standoff spacers already installed. A-15430 did not come with standoff spacers for mounting.

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Corvette, Doctor Who, Popeye Saves the Earth, Revenge From Mars, Safe Cracker, Shadow, World Cup Soccer '94

WILLIAMS: Dracula (Williams), Indiana Jones (Williams), Medieval Madness (Williams), Monster Bash, Star Wars: Episode 1
