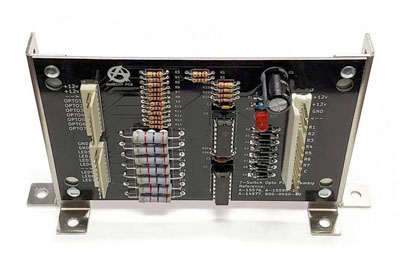

7-Opto Driver Board w/ Brackets (Bally/Williams) - Aftermarket Replacement:

Price: $90.99 each
Status: Non-stocked, special-order item. more info...
Part #: A-15595
Condition: New

7-opto switch driver board with attached mounting brackets for some later-model Bally/Williams games (see game listing below).

Replaces original opto board #s A-14977, A-15576, A-15576.1, A-15595, A-15595-1, and bare unpopulated PCB #s 5768-12921-00, 5768-12921-01, 5768-12921-02, 5768-12921-03, 5768-12921-04, and 5768-12921-05.

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
Originally for: BALLY: Attack From Mars

WILLIAMS: Johnny Mnemonic

Also works in: BALLY: Addams Family, Addams Family Gold, Attack From Mars, Cirqus Voltaire, Judge Dredd, NBA Fastbreak, Theatre of Magic, World Cup Soccer '94

WILLIAMS: Demolition Man, Flintstones, JackBot, Johnny Mnemonic, Road Show, Tales of the Arabian Nights, White Water
