Corvette (Bally) Ball Eject Assembly:

Price: $68.12 each
Status: Non-stocked, special-order item. more info...
Part #: A-15368-1
Condition: New

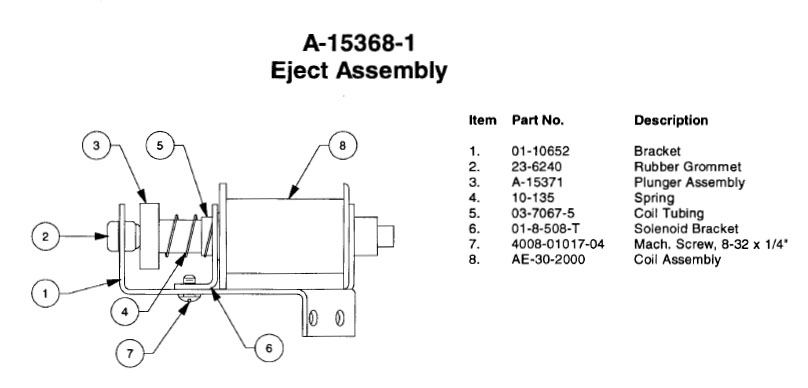

Ball eject assembly for Bally Corvette pinball.

Includes the following parts:

Bracket # 01-10652
Rubber grommet # 23-6420
Coil plunger # A-15371
Spring # 10-135
Coil # AE-30-2000
Flanged coil sleeve # 03-7067-5
Coil mounting bracket # 01-8-508-T
Coil bracket screw (2) # 4008-01017-04

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Corvette
