Click to Enlarge

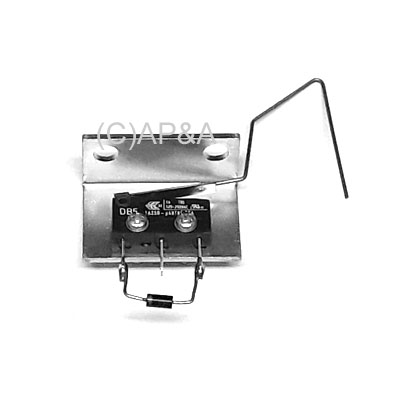

Microswitch and Bracket Assembly - Right Mount (Bally/Williams):

Price: $17.06 each
Status: In Stock
(4 Available)

Order:

Part #: A-11619
Condition: New

Microswitch with wireform actuator and mounting bracket. Commonly used for ball shooter lane on many late-model Bally and Williams games.

Includes the following parts:

Microswitch with wireform # 5647-12693-04
Microswitch diode # 1N4004
Microswitch bracket # 01-12353
Nut plate # 01-8240

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Addams Family Gold, Bugs Bunnys Birthday Ball, Creature From the Black Lagoon, Dr. Dude, Harley Davidson (Bally), Radical!, Twilight Zone

WILLIAMS: Funhouse, Riverboat Gambler, White Water
