Rebuild Kit - Vertical Up-Kicker (7pcs) (Data East) (SEE NOTES):

Price: $28.53 each
Status: In Stock
(3 Available)

Order:

Part #: 565-0029-02
Condition: New

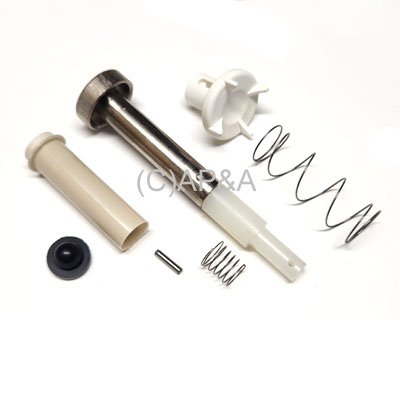

Rebuild kit which includes common wear parts to rebuild VUK vertical up-kicker assemblies in some Data East games (see game listing below).

Includes the following parts:

Coil plunger with nylon tip # 515-5352-00 (replaces discontinued part # 515-5096-00)
Coil sleeve # 03-7067 (replaces older part # 545-5076-00)
Nylon ball cup 545-5227-00
Ball cup spring # 266-5025-00
Ball cup roll pin # 251-5004-00 (replaces discontinued part # 535-5111-00)
Coil plunger spring # 266-5047-00 (replaces discontinued part # 266-5009-00)
Coil plunger rubber bumper # 545-5103-00 (replaces discontinued part # 280-5003-00)

NOTES:

This is a replacement kit for the discontinued factory original kit. This new kit contains different parts than the factory original kit.
3/16-inch tall compression retainer rings # 270-5010-00 (3 required) are not included in this rebuild kit as availability on them is currently limited. They are also not considered a "wear" part, and should only need to be replaced if lost or damaged.

Compression Ring Replacement Options:
- When available, you can order them separately
- Substitute 2 (two) of 1/4-inch tall compression ring
- Re-use your original rings.
- Find a substitute which will keep the roll pin in place (piece of shrink tubing or nylon tie-wraps possibly).

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
DATA EAST: Back to the Future, Checkpoint, Lethal Weapon 3, Jurassic Park, Rocky and Bullwinkle, Simpsons, Star Wars, Tales From the Crypt, Tommy
