Microswitch with Blade Actuator (Bally) (SEE NOTE):

Price: $8.99 each
Status: In Stock
(13 Available)

Selection: (Click to Select)
Order:

Part #: 5647-12693-70
Condition: New

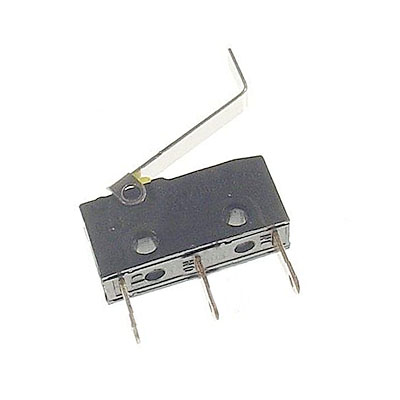

Microswitch body with short curved blade actuator mounted in forward position on switch body. For some late-model Bally games (see game listing below).

NOTE: This is a new replacement switch which has evenly-spaced solder lugs. Original factory part had differently-spaced lugs (see additional image below). This will not affect fit or connection when switch is attached to a mounting bracket with screws, and wires are connected directly by soldering. If switch is attached to a PC board, lugs on this new replacement may not match connection points on PC board.

Additional Images:
Click to Enlarge

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Cirqus Voltaire
