Microswitch with Extended Wireform - Replacement (Bally/Williams) (SEE NOTE):

Price: $19.99 each
Status: In Stock
(21 Available)

Selection: (Click to Select)
Order:

Part #: 5647-12693-62
Condition: New

Microswitch body with extended wireform actuator for some late-model Bally and Williams games (see game listing below).

Available with or without diode installed (select above when ordering- ships WITHOUT diode by default).

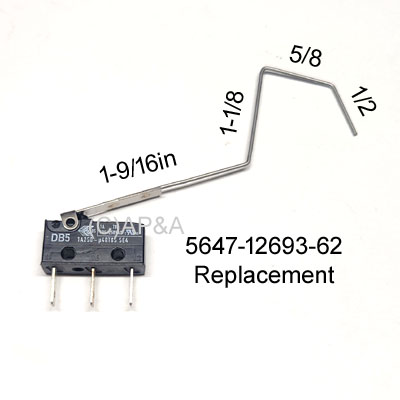

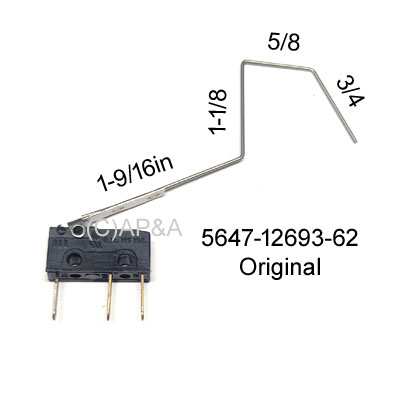

NOTE: This is a modern replacement switch assembly for the discontinued original from decades ago. Same fit and function as original, but tip of wireform is 1/4-inch shorter than the discontinued factory original (see additional images below for comparison of measurements). Microswitch body on this replacement switch is a modern unit that has equally-spaced terminals (factory original had unequally-spaced terminals with center terminal slightly forward of center).

Additional Images:
Click to Enlarge

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: WhoDunnit

WILLIAMS: Congo
