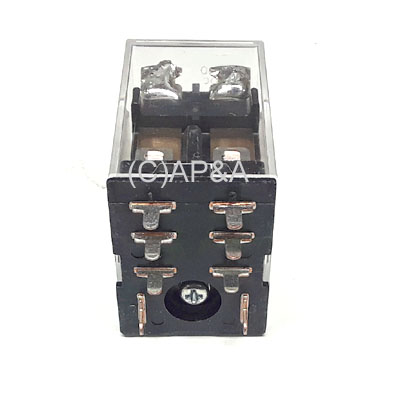

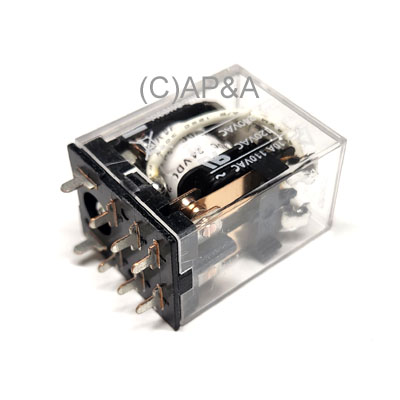

Click to Enlarge

Cube Relay - 12-volt DPDT 8-Pin Flipper Enable (some Bally/Williams WPC Games) (SEE NOTES):

Price: $17.99 each
Status: In Stock
(25 Available)

Order:

Part #: 5580-12782-00
Condition: New

12 volt cube relay, circuit board (PCB) mount, double-pole double-throw (DPDT). Contacts rated at 10 amps. 8 solder pins on bottom side (see additional image below to verify pin layout/footprint).

Applications:

Flipper enable relay on factory-original power/driver boards in some early Bally/Williams WPC-89 games (see game listing below). Please be sure your power/driver board accepts an 8-pin 12-volt relay before ordering, as electronic parts are not returnable. Most power/driver boards will instead use a 14-pin 6-volt relay (4PDT), our part # RELAY_WMS_K1.
General switching relay on stand-alone relay PC boards including part #s A-14423 and C-11998.

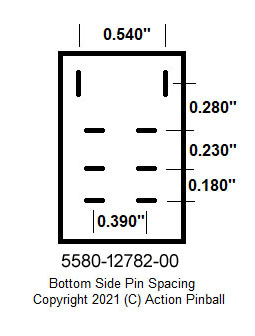

Additional Images:
Click to Enlarge

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Gilligans Island (with 5768-12243-00 power/driver board)

WILLIAMS: Hurricane (with 5768-12243-00 power/driver board), Machine: Bride of PinBot (with 5768-12243-00 power/driver board)
