Relay - 24v DPDT Cube Style (Bally/Williams):

Price: $20.69 each
Status: In Stock
(29 Available)

Order:

Part #: 5580-09555-01
Condition: New

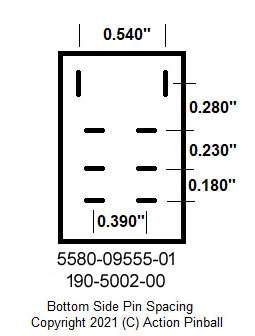

24 volt cube relay, circuit board (PCB) mount, double-pole double-throw (DPDT). Contacts rated at 10 amps. 8 pins (see additional image below for pin layout/footprint).

Found in many Bally and Williams electronic solid-state (SS) pinball games as K1 relay (see game listing below).

Fits on:

C-11998-1 and C-11232 relay PCB assemblies.
Late power supply boards in System 11 games (general illumination (GI) switching).
Auxillary Power Driver boards in some later-model System 11 games.

Replaces older part # 5580-09555-00.

Additional Images:
Click to Enlarge

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Bugs Bunnys Birthday Ball, Dr. Dude, Elvira and the Party Monsters, Game Show, Mousin Around, Pool Sharks, Radical!, Transporter The Rescue

WILLIAMS: Bad Cats, Banzai Run, Barracora (GI), Big Guns, Black Knight (GI w/ late production power supply board), Black Knight 2000, Cosmic Gunfight (GI), Cyclone (1988), Defender (GI), Diner, Earthshaker, F-14 Tomcat, Fire!, Firepower II (GI), Jokerz!, Joust (Williams)(GI), Jungle Lord (GI), Laser Cue (GI), Millionaire, Pharoah (GI), PinBot, Police Force, Riverboat Gambler, Rollergames, Solar Fire (GI), Space Station, Star Light (GI), Swords of Fury, Taxi, Time Fantasy (GI), Varkon (GI), Warlok (GI), Whirlwind
