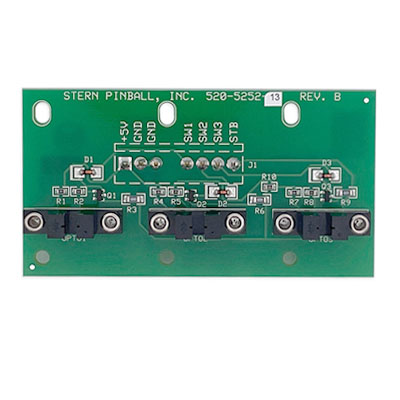

Opto Switch PC Board - 3-Bank Drop Target w/ 90-deg Connector (Stern):

Price: $89.99 each
Status: Non-stocked, special-order item. more info...
Part #: 520-5252-13
Condition: New

Factory original 3-opto PCB for 3-bank drop target assemblies on some later-model Stern pinball games.

This board features a 90-degree (right angle) wiring connector.

If your drop targets do not register when knocked down, this board may need replacing.

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
STERN: Avengers Infinity Quest LE, Avengers Infinity Quest Premium, Avengers Infinity Quest Pro, Beatles Diamond Edition, Beatles Gold Edition, Beatles Platinum Edition, Black Knight: Sword of Rage LE (Stern), Black Knight: Sword of Rage Premium (Stern), Black Knight: Sword of Rage Pro (Stern), Deadpool LE, Deadpool Premium, Deadpool Pro, Game of Thrones LE, Game of Thrones Premium, Game of Thrones Pro, Heavy Metal, Iron Maiden Legacy of the Beast LE, Iron Maiden Legacy of the Beast Premium, Iron Maiden Legacy of the Beast Pro, Led Zeppelin LE, Led Zeppelin Premium, Led Zeppelin Pro, Star Wars Comic Art Premium (Stern), Star Wars Comic Art Pro (Stern), Star Wars Premium, Star Wars Pro (Stern), WWE Wrestlemania LE, WWE Wrestlemania Pro
