Click to Enlarge

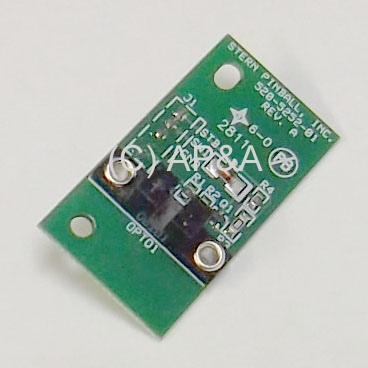

Opto Switch PC Board - Single Drop Target (Stern):

Price: $79.99 each

Status: Non-stocked, special-order item. (Contact us for ordering info.)
Part #: 520-5252-01
Condition: New
Factory original single opto PCB for single drop target assemblies on some later-model Stern pinball games.

If your drop target does not register when it gets knocked down, this board may need replacing.

NOTE: No returns on Electronics - all sales final.

  • Ask a question about this item

    Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
    STERN: 24, Black Knight: Sword of Rage LE (Stern), Black Knight: Sword of Rage Premium (Stern), Family Guy, Guardians of the Galaxy LE, Guardians of the Galaxy Premium, Guardians of the Galaxy Pro, Iron Maiden Legacy of the Beast LE, Iron Maiden Legacy of the Beast Premium, Iron Maiden Legacy of the Beast Pro, Shrek, Star Trek Pro (Stern), Supreme, Walking Dead LE
