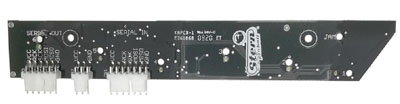

Ball Trough Opto Receiver Board - Node Extension (Stern) (SEE NOTE):

Price: $69.99 each

Status: Non-stocked, special-order item. (Contact us for ordering info.)
Part #: 520-1051-00
Condition: New
Ball trough serial opto extension node board used in some later-model Stern Pinball games. This is the receiver board used on the front of the ball trough assembly in games that use this part. Used along with opto emitter board # 520-5344-00.

Replaces # 520-1051-00A and older part #s 520-5345-00, 520-5345-01, and 520-7001-00.

NOTE: For older games that have only a 7-pin cable connector housing for this board, install 7-pin cable connector housing to connector header CN1 on this board. Connector headers CN2 and CN3 will remain empty/unused.

Additional Images:
Click to Enlarge



NOTE: No returns on Electronics - all sales final.

  • Ask a question about this item

    Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
    STERN: Aerosmith, Batman 66 (Stern), Game of Thrones LE, Game of Thrones Premium, Game of Thrones Pro, Ghostbusters, Guardians of the Galaxy, Guardians of the Galaxy Premium, Guardians of the Galaxy Pro, Iron Maiden Legacy of the Beast LE, Iron Maiden Legacy of the Beast Premium, Iron Maiden Legacy of the Beast Pro, KISS LE (Stern), KISS Premium (Stern), KISS Pro (Stern), Primus, Star Wars (Stern), Supreme, WWE Wrestlemania LE, WWE Wrestlemania Pro
