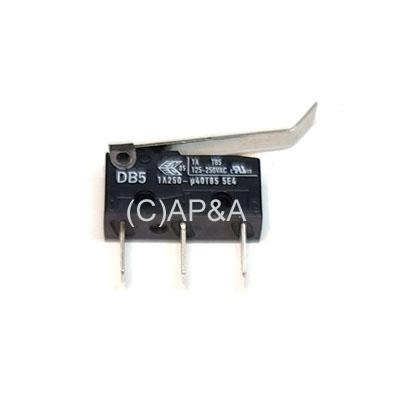

Microswitch with Short Actuator - Replacement (Sega) (SEE NOTE):

Price: $8.99 each
Status: In Stock
(8 Available)

Selection: (Click to Select)
Order:

Part #: 509-0058-01
Condition: New

Modern replacement microswitch with actuator blade. Replaces obsolete original part # 509-0058-00.

Features removable actuator blade measuring approx. 7/8-inch long. Angled part of blade measures 3/16-inch long.

Available with or without diode attached (select above when ordering- ships WITHOUT diode by default).

NOTE: Solder lug spacing on this modern replacement part is different than original part and does not work for mounting on circuit boards.

NOTE: No returns on Electronics - all sales final.
