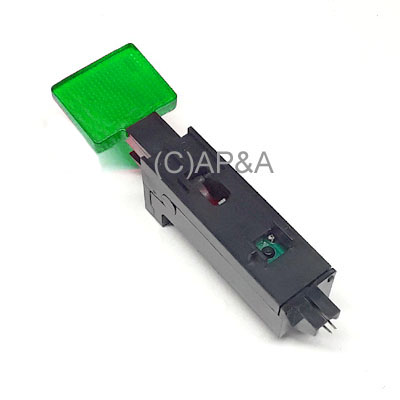

Standup Target Assembly - Modular - Green Rectangular - Rear Mount (Sega/Stern):

Price: $21.59 each

Status: Non-stocked, special-order item. (Contact us for ordering info.)
Part #: 500-6228-04R
Condition: New
Green transparent rectangular modular target switch assembly for some Sega and late-model Stern Pinball games.

Target face measures 1-3/8 inch wide, 1-inch tall.

Rear-mount target (screw mounting holes on REAR of target assembly).

Mounts to underside of playfield with two (2) #6 x 1/2 inch hex head screws (not included- order part # HWR02-030606).

Plugs directly into connector from wiring harness.

Additional Images:
Click to Enlarge
