Click to Enlarge

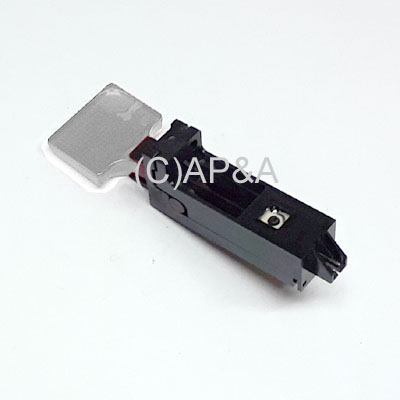

Standup Target Assembly - Modular - Clear Rectangular - Front Mount (Sega/Stern):

Price: $25.29 each

Status: Non-stocked, special-order item. (Contact us for ordering info.)
Part #: 500-6228-01
Condition: New
Clear transparent rectangular modular target switch assembly for some Sega and late-model Stern Pinball games.

Target face measures 1-3/8 inch wide, 1-inch tall.

Front-mount target (screw mounting holes on FRONT of target assembly).

Mounts to underside of playfield with two (2) #6 x 1/2 inch hex head screws (not included- order part # HWR02-030606).

Plugs directly into connector from wiring harness.

Additional Images:
Click to Enlarge



  • Ask a question about this item

    Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
    SEGA: South Park

    STERN: South Park
