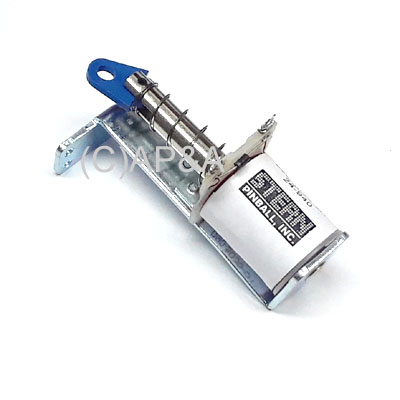

Ball Auto-Launch Coil & Bracket Assembly (Stern):

Price: $46.83 each

Status: In Stock
(2 Available)

Order:



Part #: 500-6092-02
Condition: New

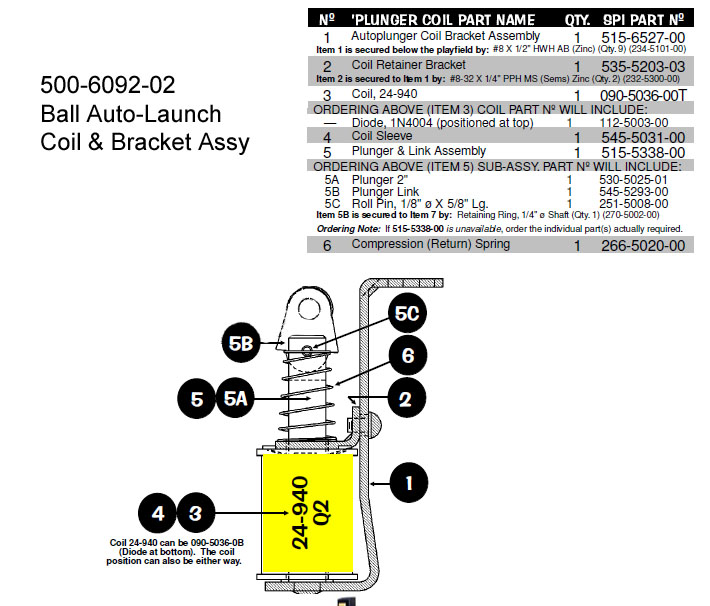

Coil and bracket assembly for ball auto-launch mechanism used in some late-model Stern Pinball games. Includes the following parts:

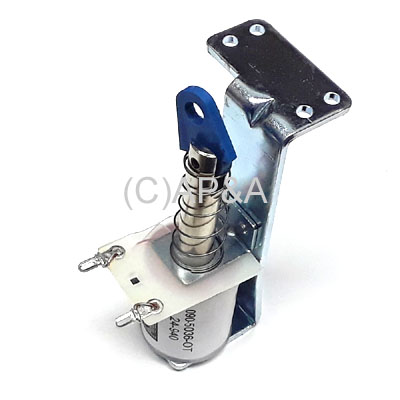

Additional Images:



  • Ask a question about this item

    Used In The Following Games:
    SEGA: South Park

    STERN: Austin Powers, Lord of the Rings, Lord of the Rings Limited Edition, Roller Coaster Tycoon, Sharkey's Shootout, South Park
