Auto Ball-Launcher Assembly w/ 090-5001-01 Coil (Sega):

Price: $109.88 each
Status: In Stock
(1 Available)

Selection: (Click to Select)
Order:

Part #: 500-5969-00
Condition: New

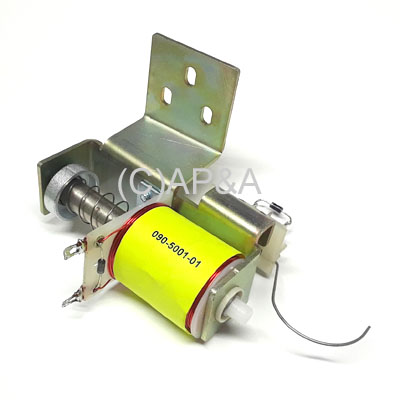

Ships fully assembled, as pictured. Auto ball-launcher mechanism with 23-800 coil (090-5001-01) for some Sega Pinball games (see game listing below). Same as part # 500-5969-00-33.

Switch available with or without diode (select above when ordering- ships WITHOUT diode by default).

Includes:

Shooter mounting bracket # 535-7331-01 (replaces older part # 535-7331-00)
Coil with diode # 090-5001-01 (23-800)
Coil sleeve # 545-5076-00
Coil tension washer # 269-5002-00
Coil plunger # A-6306-2 (replaces original-style plunger # 515-5000-02)
Coil plunger spring # 266-5020-00
Coil bracket # 535-5203-03 (replaces older part # 535-5203-01)
Coil bracket screws (2) # HWR02-090802
Rubber stopper # 545-5105-00
Microwitch assembly (no diode) # 500-5707-00
Microswitch mounting screws (2) # 234-5000-00
