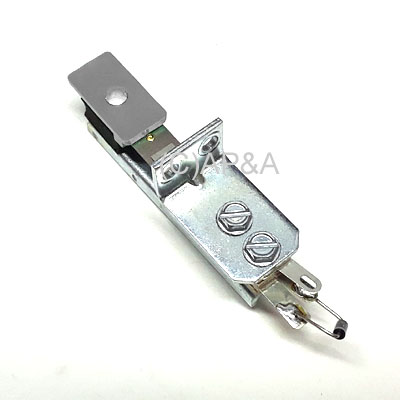

Standup Target Assembly - Narrow (Oblong) Gray:

Price:

Status: Out of Stock - Discontinued  more info...
Part #: 500-5857-14
Condition: New
Discontinued - can use # 515-5967-14 as replacement for switch portion (bracket no longer available).

Narrow gray standup target assembly with heavy-duty reinforced mounting bracket. Resists bending backwards- great for use in high-traffic areas or in place of targets that get a lot of abuse. Used on many Data East, Sega, Stern pinball games. Can be used on other makes/models as well. Includes front mounting Bracket -reinforced backing Bracket -and diode on solder lugs. Replaces part #s 500-5336-14 & 500-5780-18.

Wires must be connected with correct polarity- if installing in a Data East, Sega, late-model Stern, or late-model Bally/Williams game, the green wire(s) will go to empty solder lug, and white wire(s) will connect to solder lug with diodes anode (non-banded) end.

  • Ask a question about this item

    Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
    SEGA: Baywatch
