Ball Deflector Assembly (Sega) (SEE NOTES):

Price: $65.69 each
Status: In Stock
(1 Available)

Order:

Part #: 500-5788-03
Condition: New

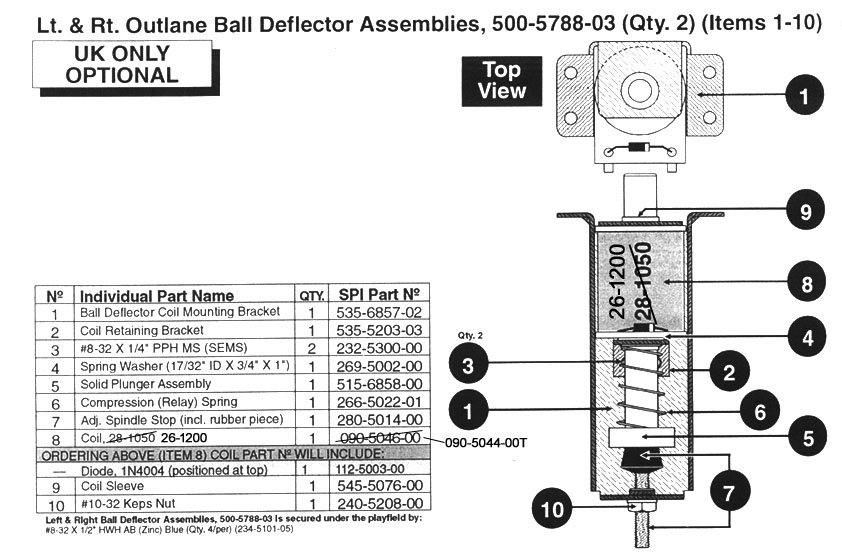

Ball deflector assembly for some Sega Pinball games (see game listing below). Ships fully assembled.

NOTES:

We suspect a misprint in the Lost in Space game manual which shows a mini coil # 090-5046-00 being part of this assembly. 090-5046-00 does not physically fit with the other parts in this assembly (coil is too small). We suspect this is a misprint and should be a 090-5044-00T coil instead. This assembly ships with a 090-5044-00T coil installed.
This assembly ships with Bally/Williams coil plunger # 02-4668 (black tip, screw hole in top) instead of Sega coil plunger # 515-6858-00 (white tip, no screw hole in top) as the Sega plunger is inordinately expensive. If you would prefer the Sega plunger, contact us for special-order information and additional cost arrangements.

Includes the following parts:

Mounting bracket # 535-6857-02
Coil bracket # 535-5203-03
Coil bracket screws (2) # HWR02-090802
Coil tension washer # 269-5002-00
Coil plunger # 02-4668 (less expensive substitute for Sega # 515-6858-00)
Coil spring # 266-5022-01
Spindle stop w/ rubber tip # 280-5014-00
Coil # 090-5044-00T
Coil diode # 1N4004
Coil sleeve # 545-5076-01

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
SEGA: Lost in Space
