Ball Shooter Lane Switch Assembly (Data East) (SEE NOTES):

Price: $23.40 each
Status: In Stock
(1 Available)

Order:

Part #: 500-5438-00
Condition: New

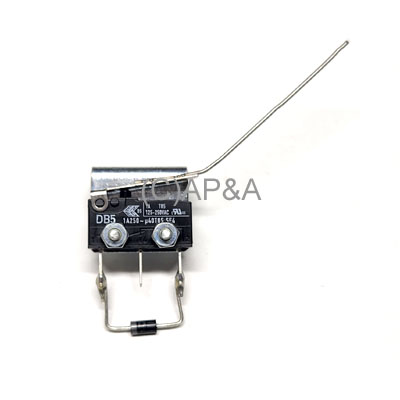

Microswitch assembly with mounting bracket, microswitch, diode, and actuator wireform for ball shooter lane in some older Data East games (see notes, and game listing below).

NOTES:

Like most switches, this one will usually always require some adjustment when installing, for proper operation.
Switch is reversible on bracket for opposite mounting. Simply remove nuts/washers, flip switch on bracket, and reinstall nuts/washers.

Includes the following parts:

Microswitch w/ diode and actuator # 180-5053-00
Microswitch mounting bracket # 535-6173-00
Screws (2) # HWR02-020206-10PK
Washers (2) # HWR03-020200-10PK
Nuts (2) # HWR01-010200-10PK

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
DATA EAST: Lethal Weapon 3, Star Trek
